Ultra 360 Standard Pneumatic Oil-Water Separator

The Ultra 360 standard pneumatic oil-water separator has a washable, reusable filter element, is compact and supports continuous circulation.Working on the principle of not altering the original coolant concentration or base oil, it effectively removes the main leaked (tramp) oil, reducing the tramp-oil layer anaerobic bacteria depend on and slowing coolant acidification. It helps reduce tank corrosion and leakage on die-casting plants, screw machines, electroplating plants, washing machines, milling machines, CNC lathes, drilling machines, grinders, cutting machines and similar equipment, while reducing foul odor and pH instability along with the downstream costs they cause. Unlike conventional oil skimmers or belt, disc and chain skimmers that scoop off oil on contact, this unit preserves the original coolant concentration; the separated waste oil is highly concentrated and can be recovered for value.

• Built-in oil reservoir with patented STPM module and patented floating skimmer
• Washable, reusable filter element; compact; capable of continuous circulation
• Pneumatic pump — safe, with no risk of electric leakage
• Purifies water-based waste coolant and reduces unpleasant odor
• Removes waste oil, extending the service life of oil-mist collector consumables
• Extends tool life and reduces machine-tool wear and replacement costs

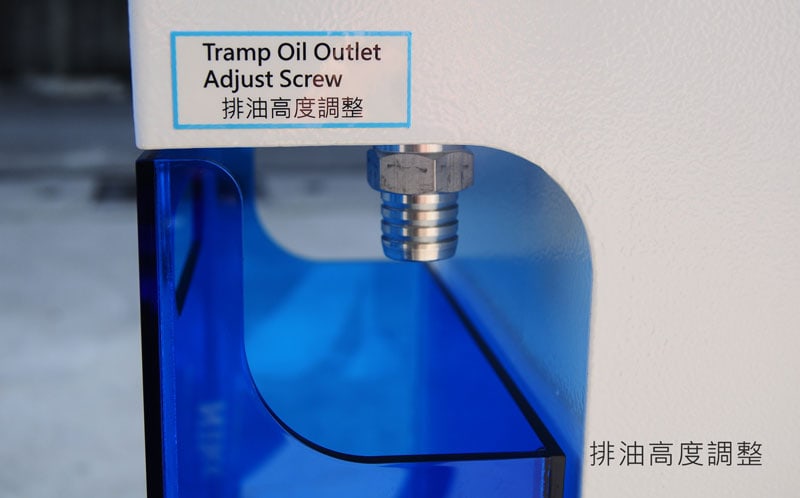

Minimized Skimmer — Patent-Certified Tramp Oil Skimmer

If leaked (tramp) oil is left untreated, it covers the coolant surface and triggers anaerobic bacteria growth; the coolant's base oil is the ideal nutrient for these bacteria, so they multiply rapidly, and the compounds produced by their reactions are the source of the odor. The patented floating oil skimmer draws off surface oil and automatically adjusts its height with the liquid level. It is compact and includes a patented anti-kink device to stay balanced, and it operates normally even at low liquid levels — down to a minimum operating height of just 5 cm.

High-Efficiency Oil-Water Separation Module — Patent-Certified S.T.P.M. Module

The patented S.T.P.M. module blends a non-oleophilic material into its compound and is integrally injection-molded, driving continuous, rapid separation of oil molecules while accelerating the settling of suspended solids.

Which costs can improve

• Tramp oil is removed continuously, so the coolant resists going rancid and change intervals can be extended
• Fewer fluid changes, which also lowers collection and disposal costs
• Continuous operation replaces manual skimming
• Separated waste oil holds little water, giving better recovery conditions
