Smart-Alert Flagship Series
GEP-200M / GEP-300L
For oil-based and water-based coolant. Vertical vortex-impeller design, filter rated to capture 5μm, with a unique smart filter-saturation warning light.
View detailsChoose equipment by
pollution source and machine conditions
Five equipment groups, each handling a different problem: oil mist, tramp oil, settled chips and fine powder. Model numbers and selection criteria are listed for each. If you are not sure which one fits, tell us about your machine and tank.
OILMIST
Oil Mist Collectors
Choosing a GEP unit: start with enclosure volume
The three units cover consecutive ranges. Match your machine enclosure volume against the axis below to find the model that fits. "Flagship" and "economy" are series names, not an indication of coverage.
Machine enclosure volume (m³)
GEP-200S
- Enclosure volume
- 1–4 m³
- Airflow 50/60Hz
- 16.5 / 18 m³/min
- Noise
- 65 dB
- Dimensions (mm)
- Ø385×340
GEP-200M
- Enclosure volume
- 4–5 m³
- Airflow 50/60Hz
- 20.5 / 25 m³/min
- Noise
- 65 dB
- Dimensions (mm)
- 420×480×420
GEP-300L
- Enclosure volume
- 5–7.5 m³
- Airflow 50/60Hz
- 29 / 35 m³/min
- Noise
- 73 dB
- Dimensions (mm)
- 500×565×490
The GEP-300L runs at 73 dB, against 65 dB for the other two — worth weighing if the work area is sensitive to noise. Airflow is stated for both 50Hz and 60Hz supplies. Final selection still depends on extraction point, duct length and the machine openings.
ULTRA
Coolant Purification Systems
Ultra 90 Compact Pneumatic Oil-Water Separator
ULTRA-90
Compact and easy to integrate with CNC. Pneumatic for leak-free safety, with the patented STPM module built in.
View details
Ultra 360 Standard Pneumatic Oil-Water Separator
ULTRA-360
Built-in oil reservoir with a standard filter-cleaning gauge. The filter element is washable and reusable, running in continuous circulation.
View details
Ultra 1200 Central Oil-Water Separator
ULTRA-1200
Designed for central treatment systems or raft-type setups; suitable for large processing flow.
View detailsChoosing between the three Ultra units
The difference is not only the flow figure. Body height runs from 430 to 880 mm, and whether it fits beside your tank — and whether you need a separate oil drum — is usually what decides it.
Body height, to scale (mm)
Ultra 90
- Max flow rate
- 90 L/Hr
- Working volume
- 10 L
- Built-in oil reservoir
- None — needs external collection
- Min. starting pressure
- 2.5 kg / 35 psi
Ultra 360
- Max flow rate
- 360 L/Hr
- Working volume
- 14 L
- Built-in oil reservoir
- 2 L
- Min. starting pressure
- 2.5 kg / 35 psi
Ultra 1200
- Max flow rate
- 1200 L/Hr
- Working volume
- 70 L
- Built-in oil reservoir
- 4.5 L
- Min. starting pressure
- 3 kg / 50 psi
Figures above are as stated in the original catalogue. Selection still depends on tank volume, how far the level varies, the space available and the air supply on site. Send us those and we will help you work it out.
SLUDGE
Chip Vacuum Removal & Precision Filtration
FC Chip-Recovery Circulation Series
FC180 / FC180 Plus / FC380
Negative-pressure vacuum continuous filtration that captures iron chips, aluminum sludge, and tungsten-carbide powder; chips no longer pile up on the tank floor.
View details
FCG-105 Precision Filtration System
FCG-105
Filtration precision of 5μm, suitable for high-precision machining such as semiconductor, EDM, and grinding.
View details
FCG-105 AUTO Precision Filtration System
FCG-105 AUTO
Automated dual-filter alternating filtration plus a sub-tank for continuous circulation with no downtime.
View detailsPARTS
Accessories & Modules
S.T.P.M Oil-Water Coalescing Module
STPM
Standard accessory across the full Ultra range. Injection-molded in one piece from non-oleophilic material with a special star-shaped design; washable and reusable.
View details
Floating Oil Skimmer
Patented anti-twist tube design that self-adjusts to the water level, with a minimum operating height of 5 cm.
View details

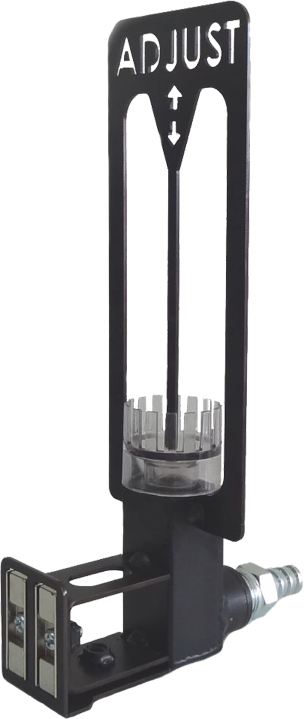

Standing-Type Stepless-Adjustment Skimmer
Just 4×13 cm in size, it fits into narrow tanks and offers stepless manual adjustment.
View details

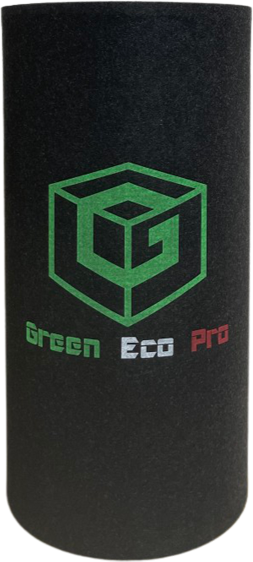

High-Performance Activated-Carbon Smoke-Filter Cartridge
Three-layer filter media plus an activated carbon deodorizing layer; filter media labeled HEPA/E11, capturing particles down to 1μm.
View details

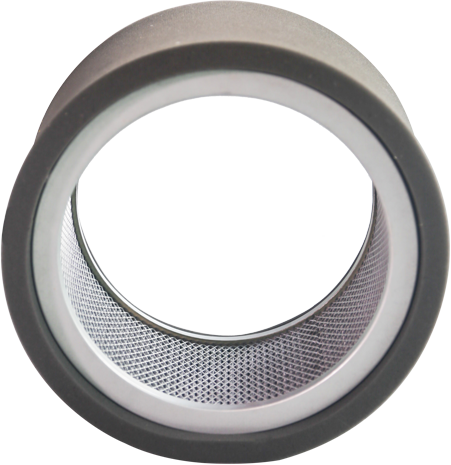

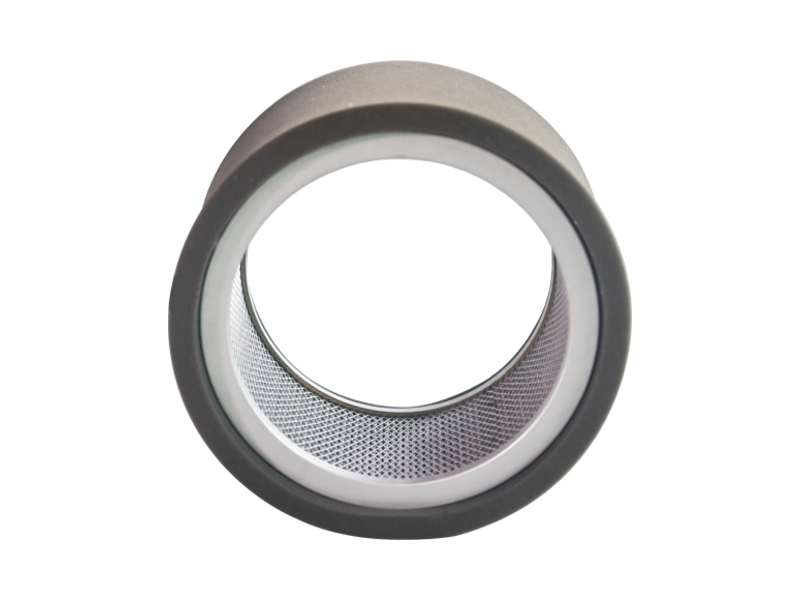

Dual-Opening Filter Screen and Filter Cotton
Pleated oil-repellent 30% filter media with 5μm filtration accuracy; washable and reusable.
View details

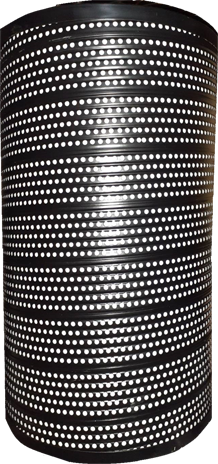

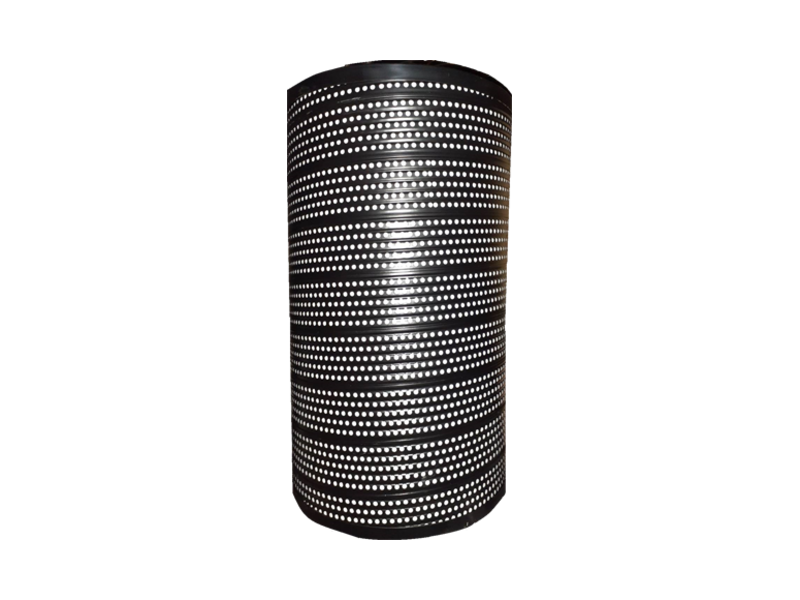

FCG-Series Filter Cartridge
Three-layer special-material weave with 5μm filtration accuracy and 110 LPM flow throughput.
View detailsNEW2023
Water Treatment & Peripherals
UV-135 UV Sterilizer
UV-135
UV-C ultraviolet light irradiates the coolant as it flows through and damages microbial DNA; used to suppress tank odour and bacterial counts.
View details
ACT-530 Air Clean Table
ACT-530
Air Clean Table; pairs with automated robotic arms and offers three-stage height adjustment for dust and chip collection.
View detailsNeed help choosing the right equipment for your line?
Tell us your machine type, coolant type and tank capacity, and we'll help confirm a suitable model and send you the catalog.
