FC Chip-Recovery Circulation Series

The FC Sludge Removal & Coolant Recirculation series uses the negative-pressure vacuum principle to obtain high suction volume for continuous filtration, intercepting impurities and suspended particles. Whether the coolant is oil-based or water-based, it captures iron chips, aluminum sludge, aluminum chips, copper powder, aluminum powder, tungsten-carbide powder, graphite and other contaminants, with zero consumable cost, making it a highly cost-effective chip extractor. Widely used on lathes, milling machines, grinders, drilling machines, CNC, boring machines, planers, sawing machines and broaching machines.

• Continuous (non-batch) processing / no need to worry about an empty tank
• No electricity required / pneumatic pump / high safety
• No downtime / increased output
• Dewatering capability / reduced moisture content
• Consumable-free / the stainless-steel filter basket simply needs cleaning
• Reduces coolant loss
• Increases effective tank capacity
• Improves production utilization

Impact of sludge not being removed in time

During machining the chip conveyor removes some swarf, but sludge that is not carried away settles at the bottom of the tank, breeding anaerobic bacteria that release odor and acidify the coolant, lowering its pH and causing it to degrade and spoil; it also reduces the effective tank volume, leading to insufficient coolant supply.

Negative-pressure vacuum filtration principle

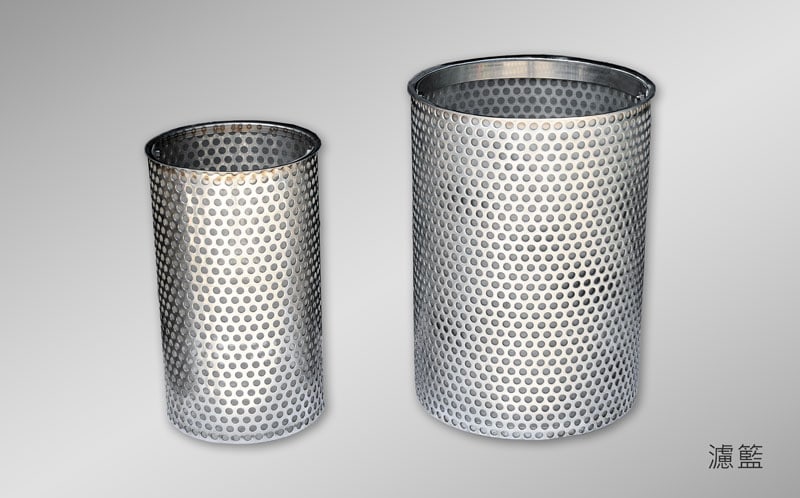

The FC series generates a negative-pressure vacuum with a pneumatic pump to obtain high suction volume, continuously drawing impurities and suspended particles from the tank bottom and trapping them in a stainless-steel filter basket. The whole process requires no electricity and no consumables; the basket is reusable after cleaning, balancing safety with operating cost.

Benefits

Effective tank capacity increased by 40%; operator health is priceless, saving 15% in labor cost; the consumable-free design saves more the longer it is used; CNC machines need no downtime, raising utilization by 50% for high output and high efficiency.
